VHF UHF Rooftop Antenna Install

The below is the detail of the VHF/UHF antenna I had installed on my roof.

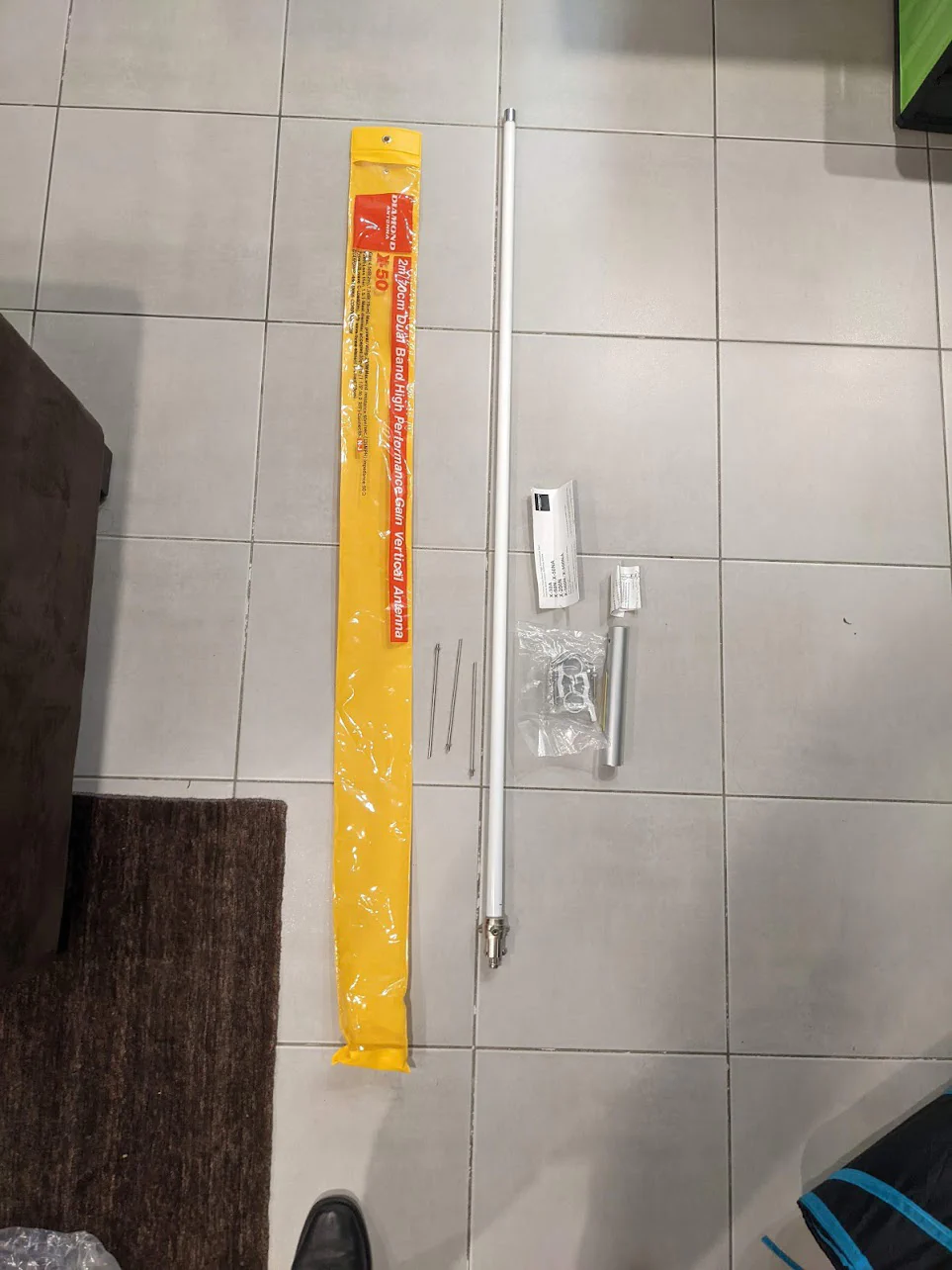

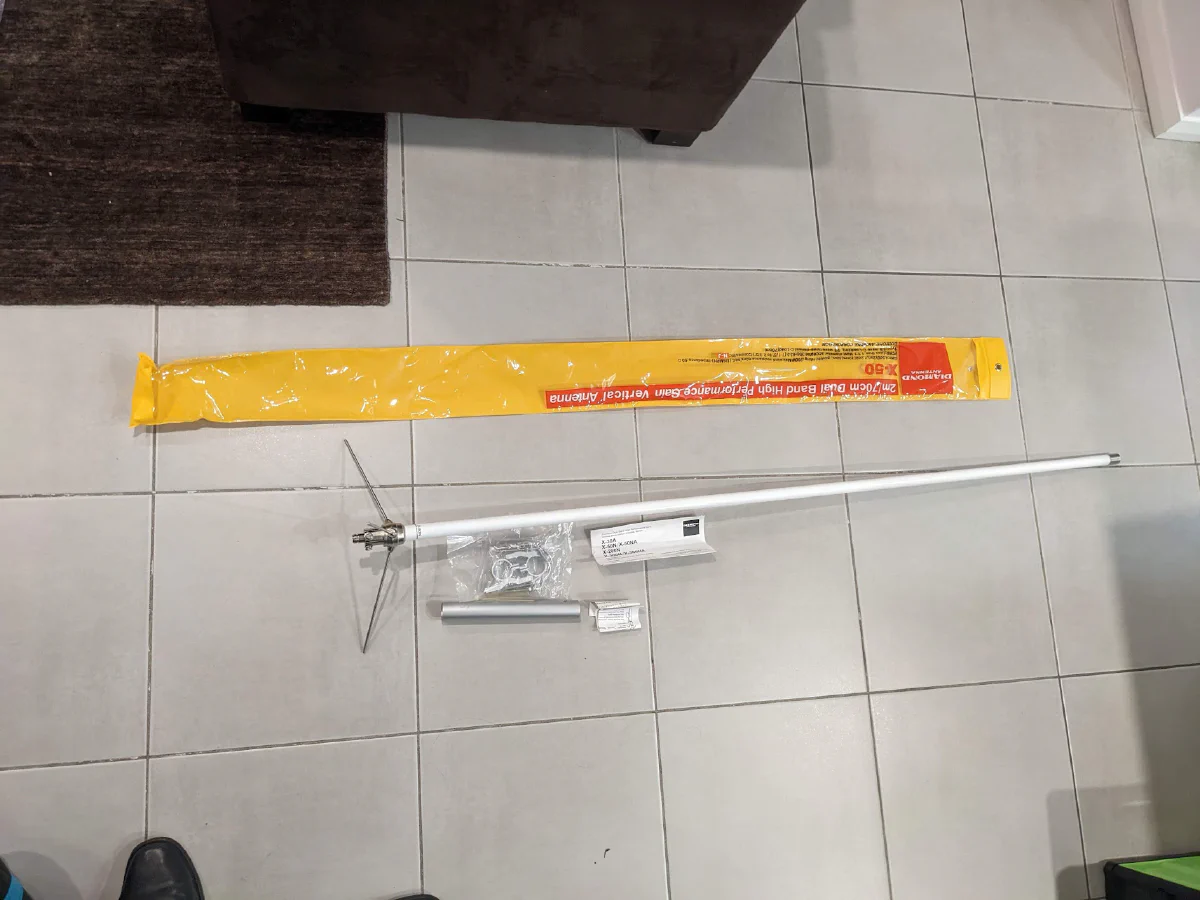

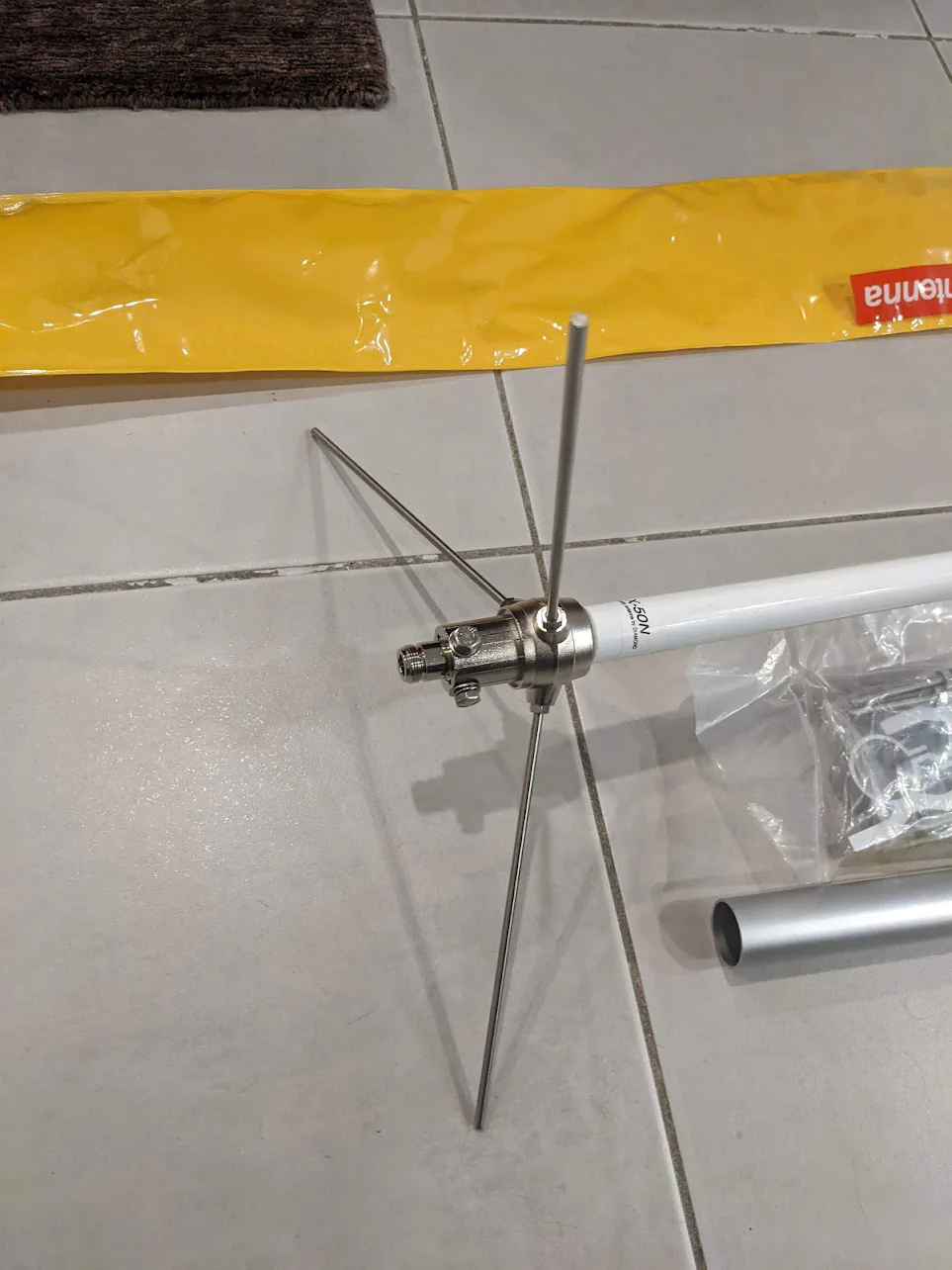

Antenna - Diamond X50N

Click for manufacturer details and installation guide

Coax

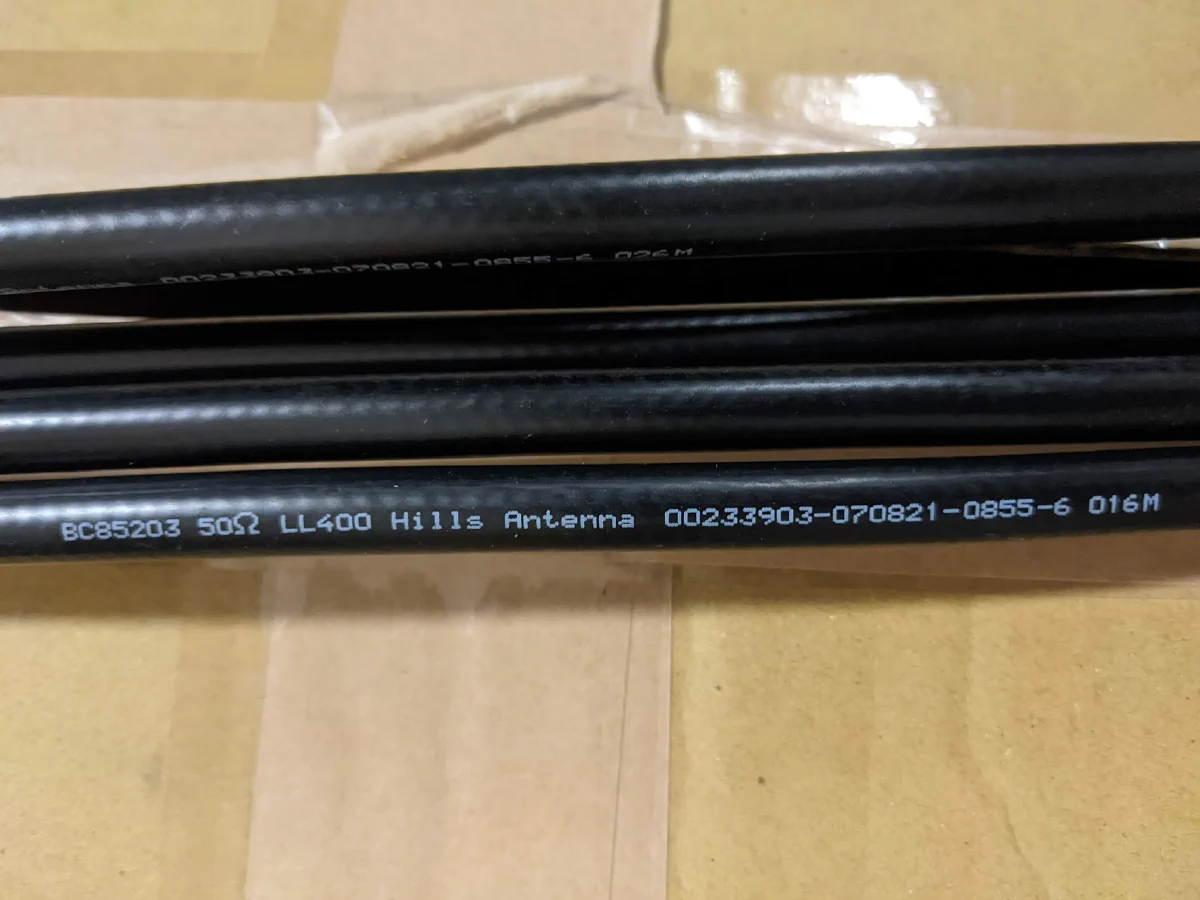

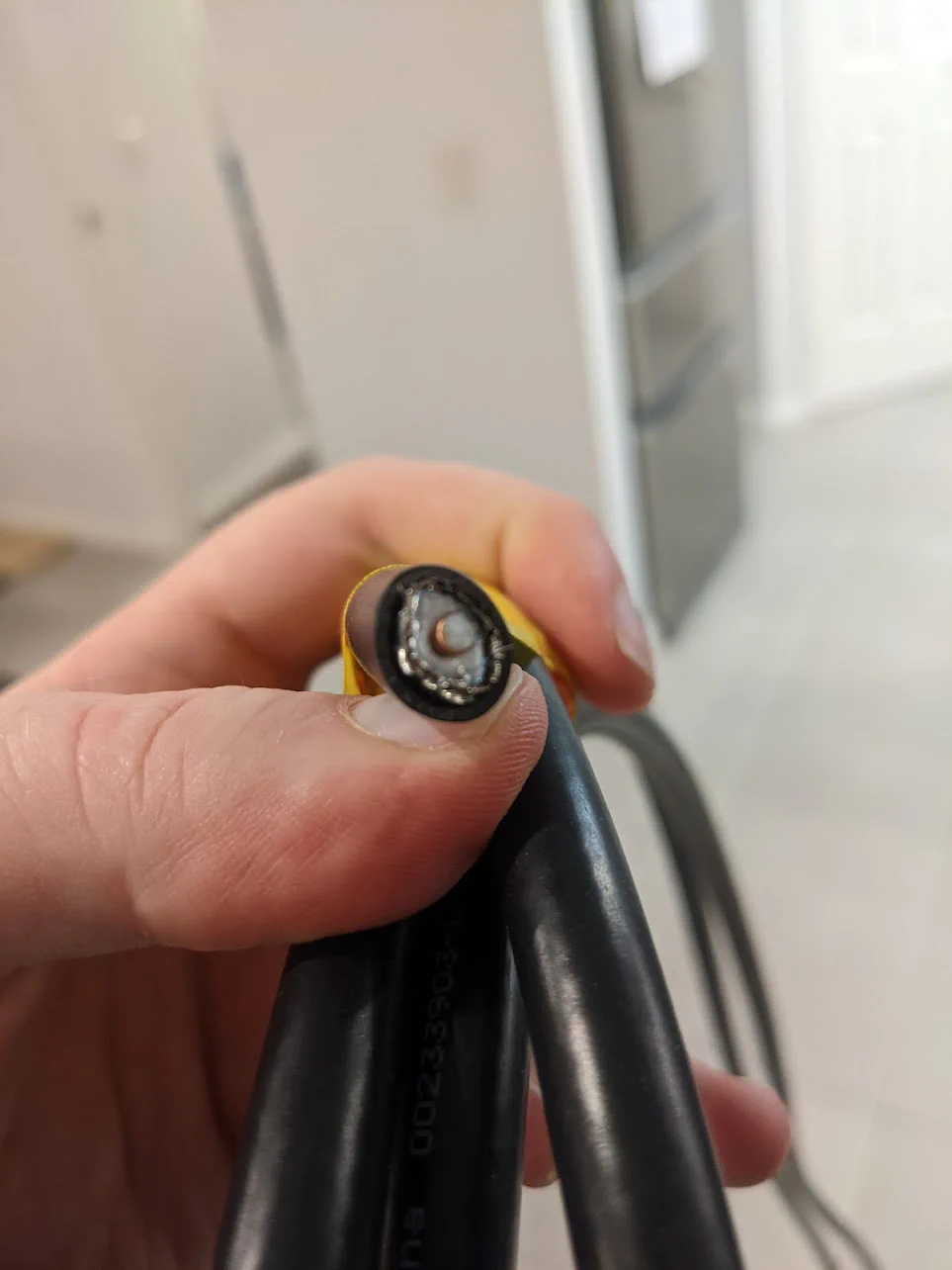

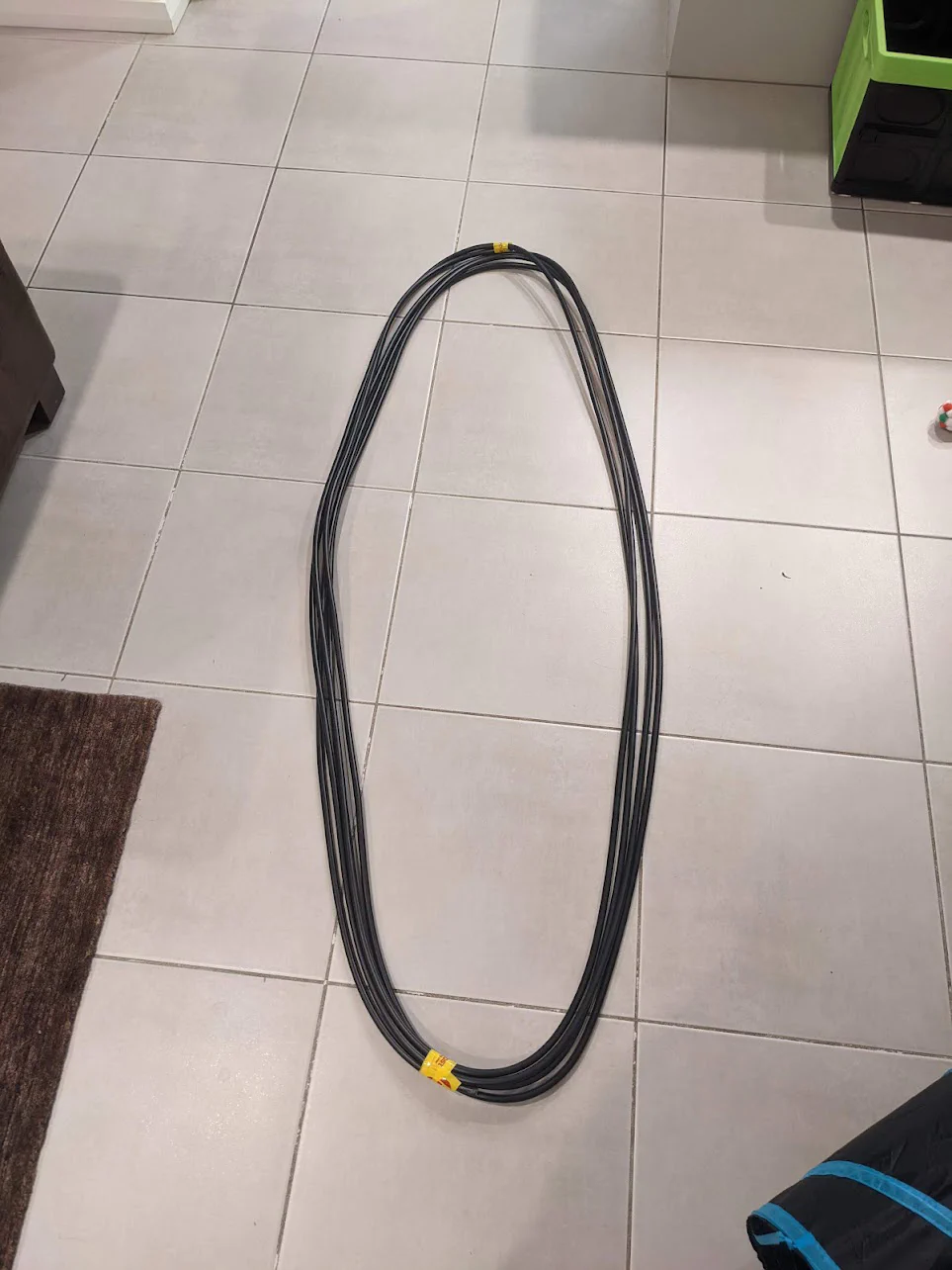

15 meters of LL400 (LMR400 equivalent), should be more than enough for the job.

Type N Coax Fittings

The below were the connectors I used, I would have preferred two of the compression fit connector, but at the time I was unable to locate more.

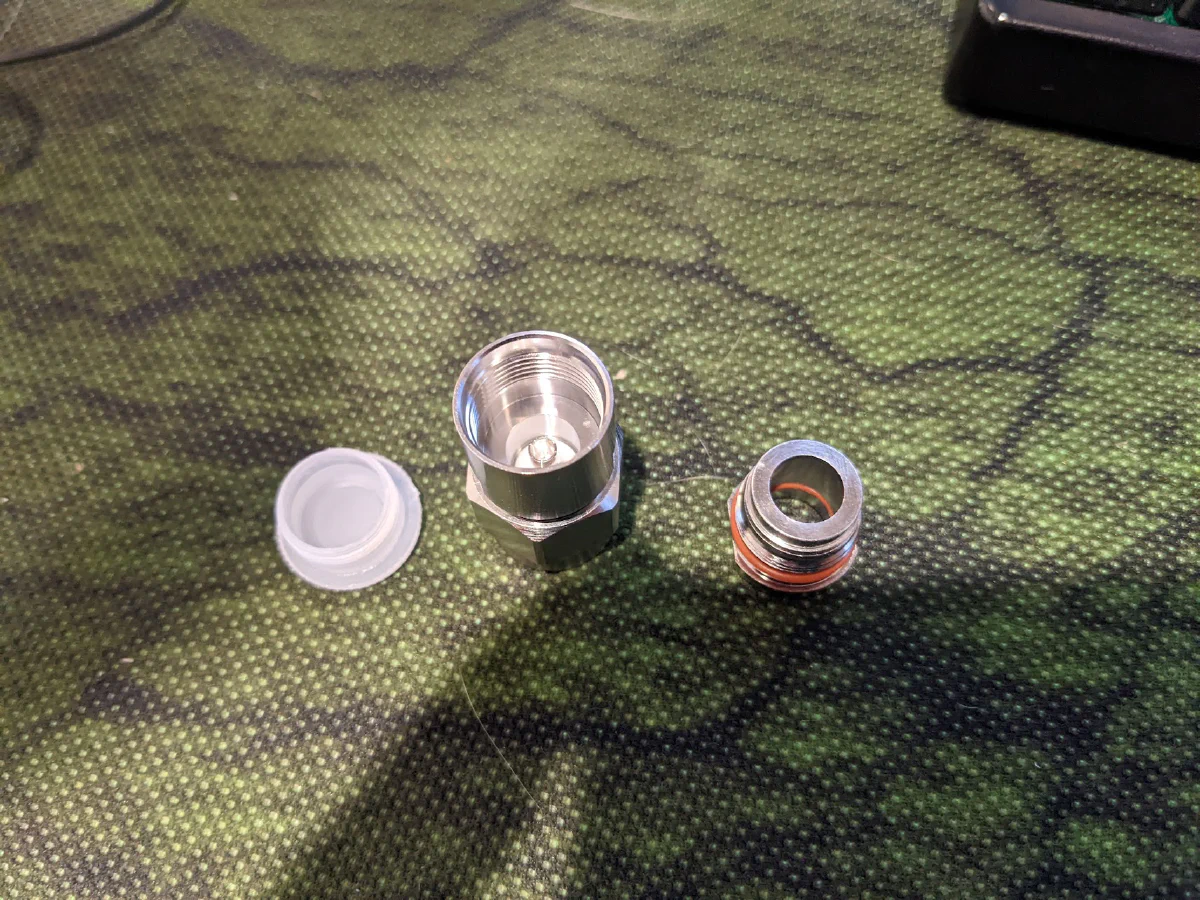

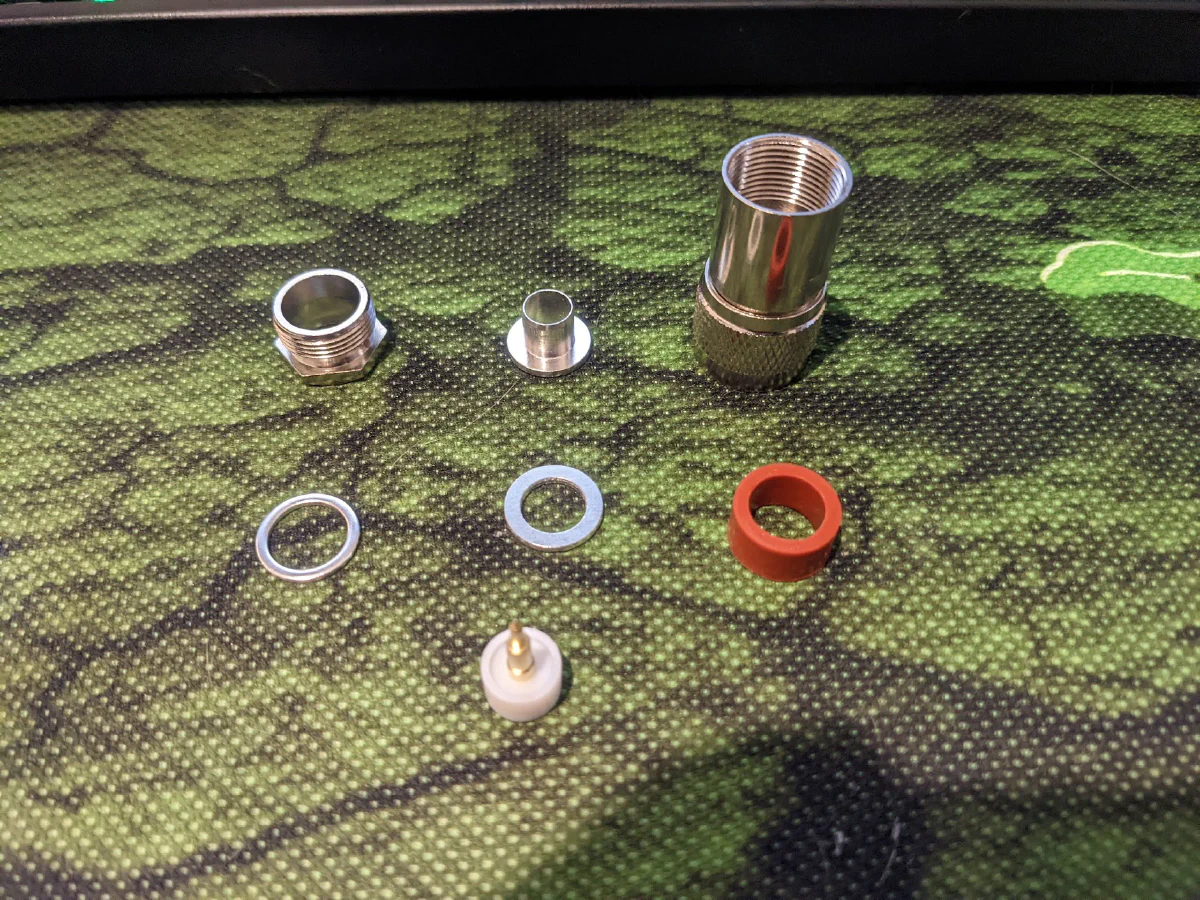

Type N Coax Fitting #1 (compression fit)

Click for usage guide

Type N Coax Fitting #2

Click for usage guide

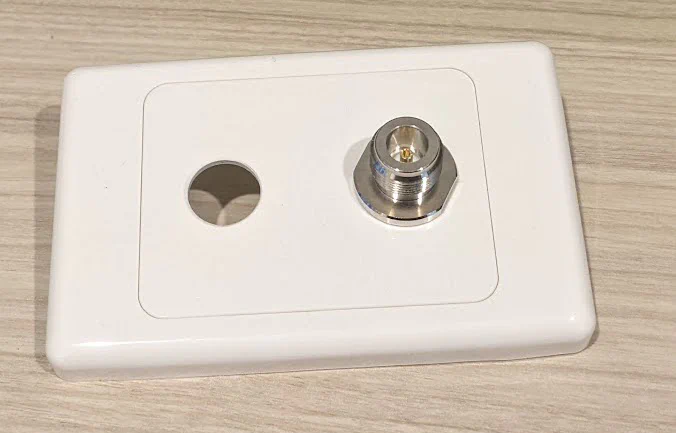

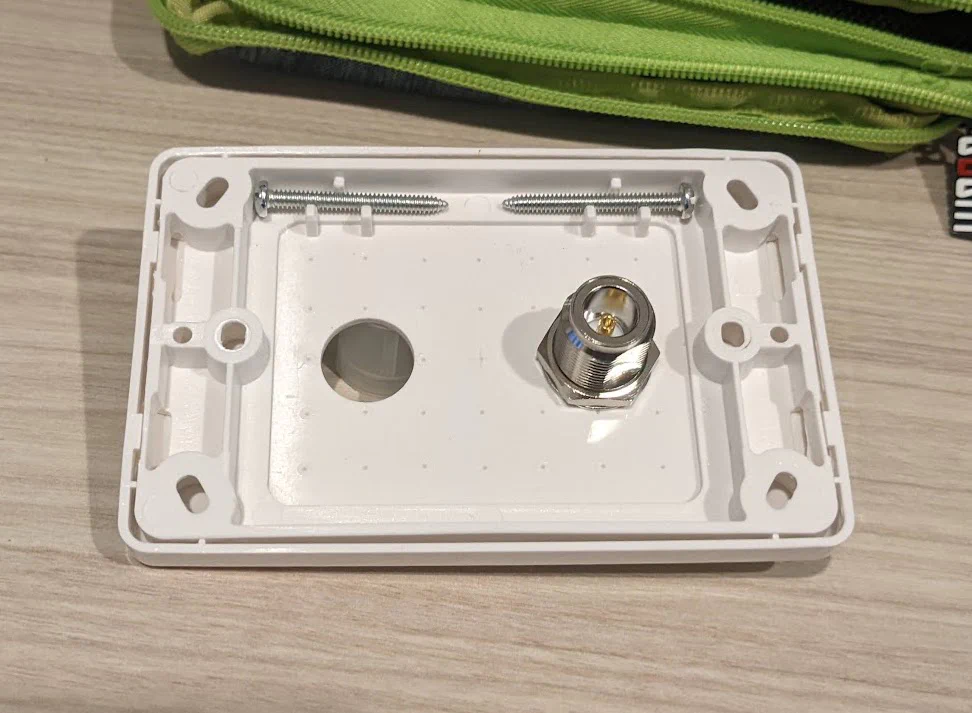

Wallplate

I got this wallplate for the interior of the house.

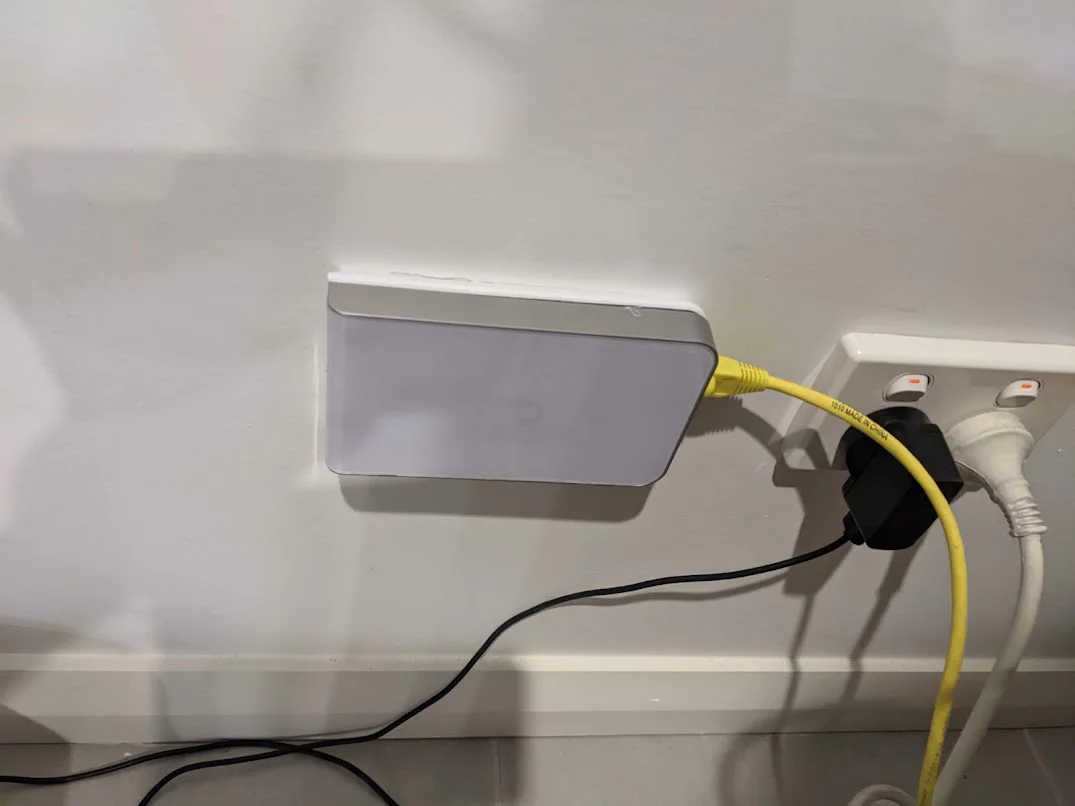

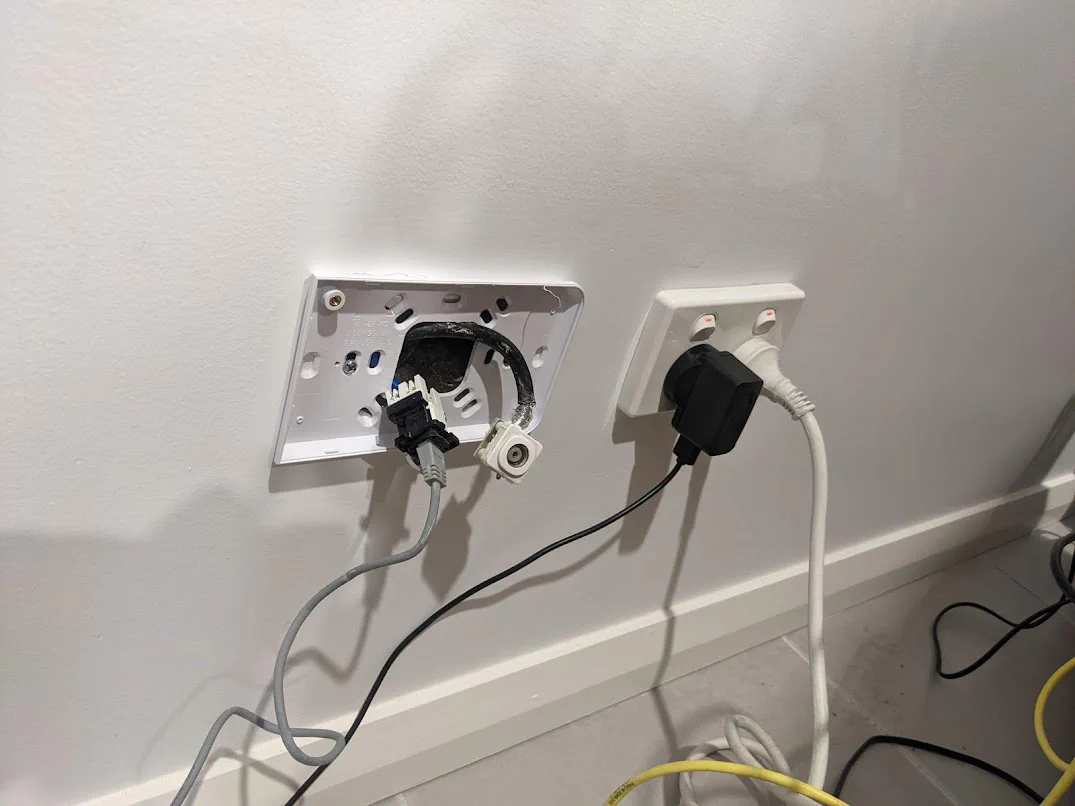

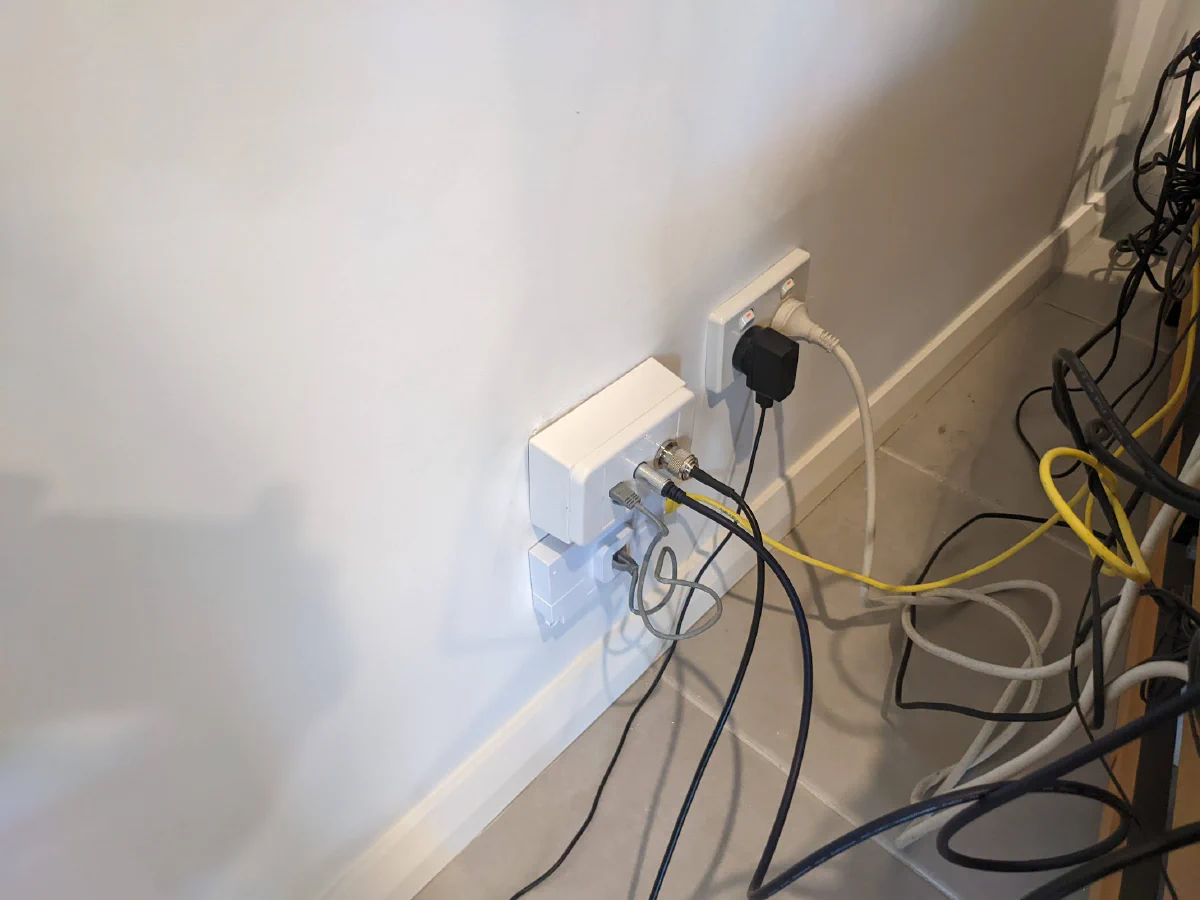

Exisiting TV Antenna and Ethernet Location

This was my existing inside wallplate, I had a TV antenna trapped behind my AP, I decided to fix this at the same time.

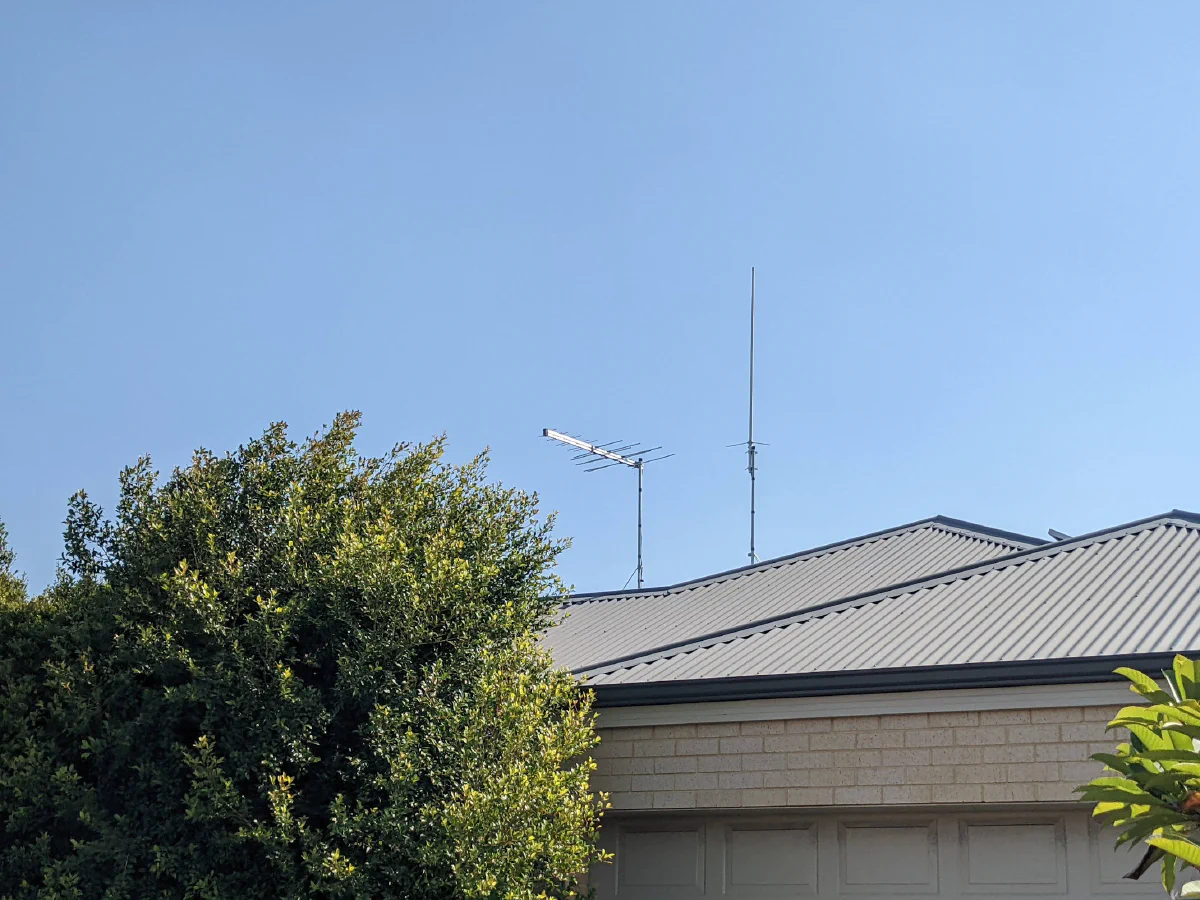

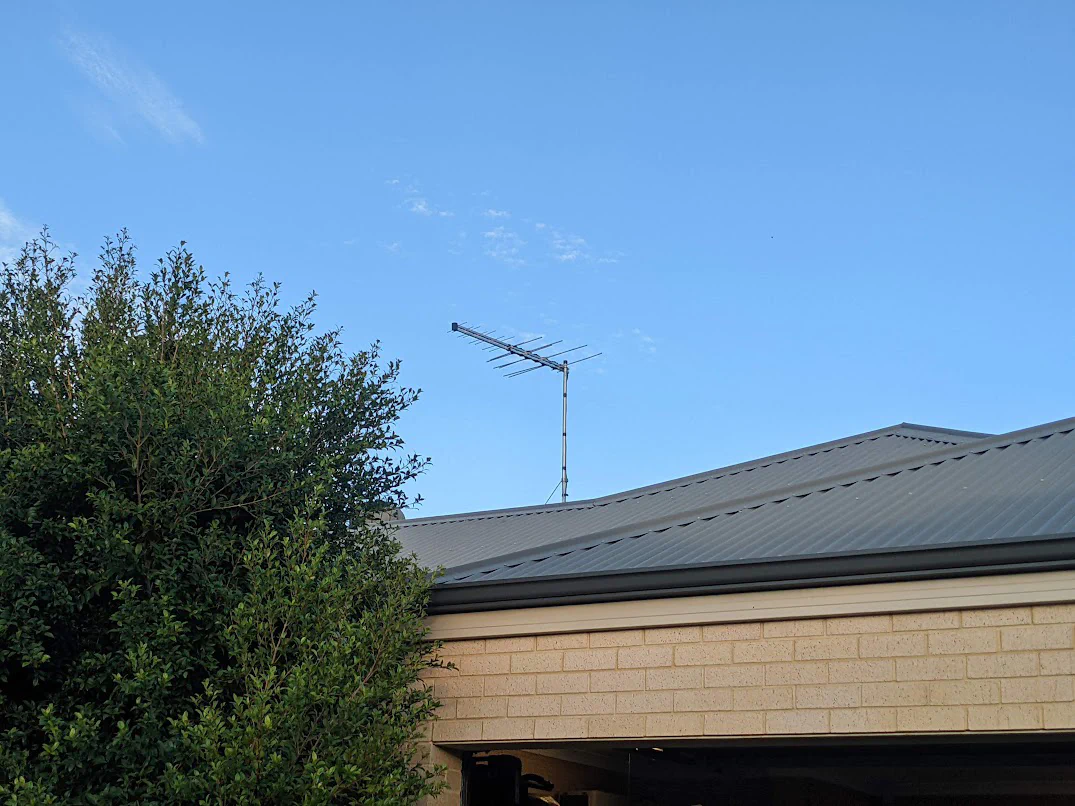

TV Antenna on Roof

This was the existing situation outside the house

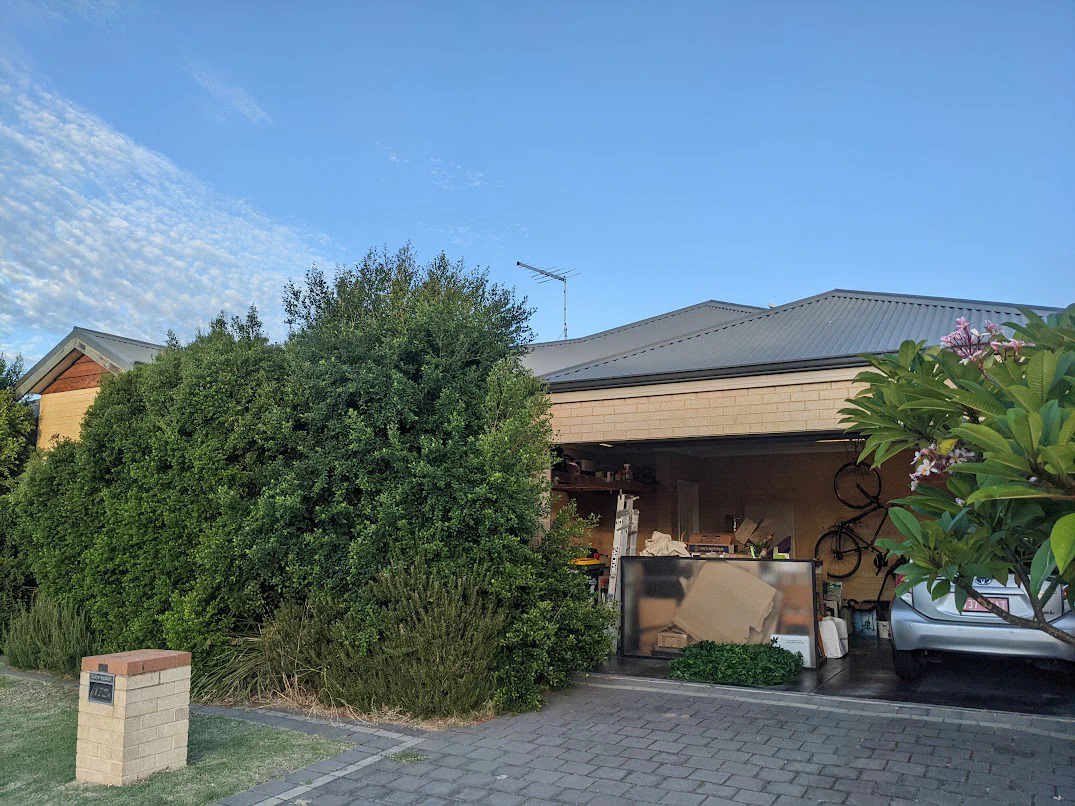

Install Done

All done!
